SHIELD Operator's Manual

Hello, and welcome to the SHIELD Operator's Manual, an in-depth look at all things SHIELD. This guide aims to be an exhaustive guide to the installation and operation of the SHIELD Data Protection solution.

If you are looking for a more easy-going start-up guide, you may want to check out the Getting Started guide.

If you are interested in contributing to SHIELD itself, or wish to write a plugin to extend the capabilities of your SHIELD installation, head on over to the SHIELD Developer Documentation.

What is SHIELD?

SHIELD is a data protection solution. It is designed to run scheduled tasks to backup your important data systems to off-site cloud storage solutions, and facilitate the restoration of backup archives in the event of outages or data loss.

SHIELD supports lots of different data systems, through its flexible and modular plugin architecture. We currently support:

• PostgreSQL databases, via the postgres plugin.
• MySQL / MariaDB, via the mysql plugin, or the xtrabackup plugin.
• Redis key-value store, via the redis plugin.
• ... and many more.

Cloud Storage systems are likewise pluggable. Out of the box, SHIELD supports:

• Amazon S3 (and S3 work-alikes) via the s3 plugin.
• Microsoft Azure Blobstore via the azure plugin.
• GCP Blobstore via the google plugin.
• On-premise WebDAV endpoints, via the webdav plugin.
• ... and several others.

SHIELD is a distributed system. The SHIELD core leverages a network of agents to do the heavy lifting of data backup and restore. When you deploy SHIELD into your infrastructure, yet get to choose how many agents you want to provision, and where in the network they sit.

Multi-tenancy is baked right into SHIELD via a robust role-based access control (RBAC) system in place to help isolate different subsets of users from one another. People in one tenant are unable to see configurations made by people in another tenant. This allows a single SHIELD to support multiple, independent teams.

SHIELD also supports a sophisticated authentication system. You can hook up to your external Cloud Foundry UAA server, a BOSH UAA instance, or even Github (both public and on-premise). As users log in via their external credentials, SHIELD will automatically create the necessary tenants and assign roles based on the SHIELD configuration.

We believe strongly in encryption. Whenever SHIELD communicates across the network, it does so over encrypted channels (SSH, TLS/HTTPS), with endpoint identity verification (host keys, mutual TLS, etc.). All backup archives are encrypted with unique key material, to ensure that data at-rest is also resistent to snooping and tampering.

Installation

Before you can begin to use SHIELD to protect your important data, you're going to need to install it. You have two options: via BOSH (ideal for Cloud Foundry users), or via Docker.

Planning Your Installation

Before you start installing the software, it's worthwhile to take a step back and plan out your installation

Network Topology

SHIELD operates best on flat network topologies, without NAT devices or HTTP(S) proxy services.

SHIELD requires mutual network visibility between the core and all cooperating agents. Each agent issues a small HTTP request to the core, to inform the core that it is alive, and ready to be inventoried. This is called the registration ping. For each registration ping received, the core records the name and port given and the remote address of the connecting TCP socket. At some later time, the SHIELD core will initiate an SSH connection to the recorded agent IP address, and gather agent information.

Because of this, NAT devices tend to confound SHIELD. The registration ping originates (at the TCP level) from the NAT gateway, not the host running the SHIELD agent software. When the core attempts to connect back to the agent, it initiates a connection to the NAT device on the agent port, which generally fails.

Flat networks with HTTP(S) proxies are not impossible, but they can be unruly. When configuring proxy clients (via http_proxy / https_proxy, no_proxy environment variables, or similar mechanisms), you will want to be especially cognizant of the HTTP(S) connections needed by the SHIELD software itself. Often, these connections will need to bypass am Internet-bound proxy (i.e. one in a DMZ) in order to function.

Likewise, if your cloud storage solution is to be dealt with over HTTP(S), you will need to make sure that either your proxy server can contact it on behalf of each SHIELD agent, or that each agent blacklists the domains and/or IP addresses of the storage endpoints in something like no_proxy.

Where to Colocate SHIELD Agents

Depending on the data systems you wish to backup, and their configuration with respect to access control, you may be able to get away without colocating any SHIELD agents in your infrastructure.

There are really only two reasons for colocating a SHIELD agent on a data system installation: plugin requirements and host access control configuration.

Most SHIELD plugins stream their data through, without relying on any temporary local storage. This removes a throughput bottleneck (the disk), as well as a capacity concern (how much temporary space do you need?). Some plugins, however, require local disk. If the target system doesn't require local access (more on that in a moment), you may want to spin up some machines with large ephemeral disks just to handle these backup / restore operations. The conversation for backing up data then looks like this:

Some plugins absolutely cannot be executed across the network. The Filesystem Plugin, for example, can only deal with files on the local filesystem (networked filesystems notwithstanding). Therefore, if you need to back up files on a host, you will need to deploy a SHIELD agent to run on that host.

Using BOSH

BOSH is a cloud-agnostic deployment and orchestration tool that excels at lifecycle management of software at all scales. SHIELD has a BOSH release that can be used to deploy both the SHIELD core, and SHIELD agents into new and existing BOSH deployments.

If you're already using BOSH (for example, if you are deploying Cloud Foundry), adding SHIELD into your infrastructure should be easy. If you are still looking for a great release engineering framework, you can get your feet wet with a SHIELD deployment or three.

The SHIELD BOSH release can be found on Github.

Deploying the SHIELD Core

Usually, the SHIELD core is a standalone, self-contained deployment. To deploy, you'll need to find or create a deployment manifest. A good starting point can be found here.

Save that file locally, as shield.yml, and then run:

$ bosh -e my-bosh deploy \
    -d shield \
    -v static_ip=192.0.2.5 \
    -v domain=shield.example.com \
    shield.yml

Replace domain with the FQDN of your SHIELD management console, and 192.0.2.5 with a static IP that you want to deploy SHIELD on. You may need to consult your BOSH cloud-config to find a suitable IP in the default network. Optionally, you may modify the deployment manifest to specify a different network.

NOTE: The provided deployment manifest assumes that your BOSH director has been deployed with a config-server that can generate the necessary certificates and keys for securing SHIELD's communications. If that is not the case, you will need to provide additional command-line options to the bosh deploy command to store the generated credentials locally. See the BOSH documentation for more information.

Once BOSH has finished deploying SHIELD, you should be able to access the SHIELD management console at https://$IP. The default login will be admin (username) and password (password).

Deploying SHIELD Agents

If you need to colocate agents on other BOSH deployments, you have a few options. The fastest method is to modify those deployment manifests to include the shield-agent job in the appropriate BOSH instance groups, like this:

instance_groups:
  - name: some-database
    jobs:
      # ... other jobs ....
      - name:    shield-agent
        release: shield

    # ... rest of configuration ...

This can get out of hand fast. A more elegant solution is to use BOSH runtime configs and inject the SHIELD agent job into other deployments without mucking about with their deployment manifests.

Here's a working runtime config:

---
releases:
  - name:    shield
    version: 8.4.0

addons:
  - name: shield
    jobs:
      - name:    shield-agent
        release: shield

To use this, update your existing runtime-config:

$ bosh update-runtime-config addons.yml

Then, bosh deploy your pre-existing manifests, without changing them. For more information, including how to limit the shield addon to just specific deployments / VMs, read the BOSH runtime-configs documentation.

Using Docker

The SHIELD Image

The SHIELD project builds Docker images for all releases, and hosts them on Docker Hub.

To cut down on space used in image registries, and on containerization hosts, we bundle both components of a typical SHIELD deployment — the core and the agent — into a single Docker image: shieldproject/shield. If you want a SHIELD core, run the container with the /shield/init/core command. For agents, run /shield/init.agent.

Configuring the SHIELD Core

A (containerized) SHIELD Core relies on two directories that you probably want to bind-mount in from a persistent backing store:

• /var/shield stores the SHIELD database, which houses all of the live configuration and metadata, including pointers to all backup archives. It's kind of a big deal.

• /etc/shield stores the SHIELD static configuration.

The latter directory is trickier to get right, since it contains some specific files that you may want to specify:

1. /etc/shield/shieldd.conf - A full SHIELD core YAML configuration file. If not present, one will be created for you during container boot, pursuant to a set of environment variables (detailed next).

2. /etc/shield/ssh.key - A private key to be used for core ⇆ communication (initiated by the core). If you don't specify a shieldd.conf file, the image will create one for you, and pull the SSH key from this file. Otherwise, this file is ignored.

If you don't want to provide files, you can configure your new SHIELD core via environment variables. See SHIELD Core Configuration Reference, below.

Embedding the SHIELD Agent

TBD

Configuration Reference

This section contains detailed descriptions of all configuration options for the SHIELD core, and SHIELD agents.

SHIELD Core Configuration Reference

The SHIELD core configuration file is a YAML file, read at startup by the shieldd binary.

Here's an example configuration file:

---
# comments start with the octothorpe (#) and continue
# until the end of the line

api:
  env: Production
  color: green
  bind: 127.0.0.1:80
  session:
    timeout: 300         # (hours) - about 2 weeks
  failsafe:
    username: admin
    password: super-sekrit-password

scheduler:
  threads: 20

limit:
  retention:
    min: 4
    max: 90

Here's the full set of configuration directives (in dot-notation) that are currently supported:

• api.bind - The IP address and TCP port that the SHIELD core daemon should bind to and listen on for incoming API (HTTP) requests. Defaults to *:8888. * is interpreted to mean all interfaces.

• api.color - You can color code your SHIELD Web User Interfaces! Set a hex value here (i.e. ##003300) or other CSS-compatible color identifier, and the web UI will use it to colorize the environment name.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_COLOR environment variable.

• api.env - An name for the environment, that SHIELD will pass through to clients accessing its API and web management console. This can be useful for differentiating your staging SHIELD from your production SHIELD. By default, no environment is set.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_ENV_NAME environment variable.

• api.failsafe.username - When the SHIELD core starts up, it checks the local users table. If it is empty (there are no local users), it creates a failsafe account, using these parameters. This is designed to assist in a safe and secure bootstrap.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_FAILSAFE_USERNAME environment variable.

• api.failsafe.password - The cleartext password to assign the failsafe user, upon creation. You can change this later, without needing to reconfigure or re-deploy SHIELD.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_FAILSAFE_PASSWORD environment variable.

• api.motd - A (hopefully) short message to display to operators on the login screen. You can use this for compliance messages, important notices, an explanation of which authentication method people should use, who to contact for help, etc. By default, there is no MOTD.

• api.session.clear-on-boot - Whether or not to clear interactive sessions from the database when the SHIELD core reboots. This is set to yes by default, which will log everyone out when the core process restarts.

• api.session.timeout - How long (in hours) before idle authenticated sessions are invalidated. Defaults to 720 hours (about a month).

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_SESSION_TIMEOUT environment variable.

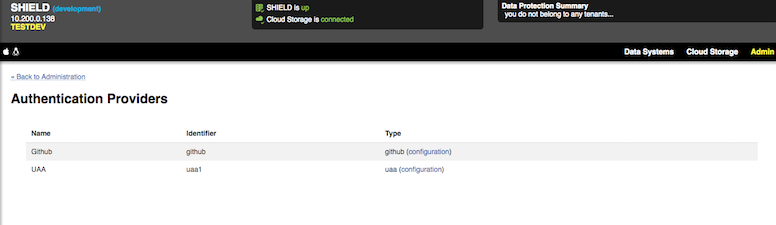

• auth - A list of non-local authentication backends.

• auth[].backend - What backend to use for this authentication provider. The backend determines how authentication is carried out, what external systems are involved, etc.

  The following backends are supported:

  • github - GitHub, either public (github.com) or private (Github Enterprise). Tenant membership is mapped based on GitHub organization / team membership.

  • uaa - Cloud Foundry UAA, to allow Cloud Foundry users to log into SHIELD without needing another account. Tenant membership is mapped based on scim rights.

• auth[].identifer - A unique (and unchanging) internal identifier for this authentication provider.

• auth[].name - The human-readable name for this authentication providers, to be displayed in command-line and web UI login flows.

• auth[].properties - A set of backend-specific configuration items.

• cipher - Which encryption algorithm and chaining mode to use for encrypting backup archives. Supported values are:

  • aes256-ctr - 256-bit AES, in Counter CBC mode.

  We plan to introduce more types as the need arises.

  Each backup archive tracks which encryption type was in force when it was taken, to allow operators to change this value without rendering previous backup archives unusable.

• data-dir - The absolute path to the directory where SHIELD will store all of its persistent data. Important files stored here include:

  • $datadir/shield.db - The SHIELD metadata database.
  • $datadir/vault/* - The encrypted files that back the vault.
  • $datadir/vault.crypt - The encrypted file which stores the seal keys to the SHIELD Vault. This file is encrypted with the SHIELD master password.
  • $datadir/bootstrap.log - A log of what occurred during a SHIELD from-nothing recovery.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_DATA environment variable.

• debug - Whether or not to enable verbose debug logging. This is a boolean, and it defaults to no, which is a sane choice for any production or staging environment. Debug logging is verbose, and very low-level. It is of primary value to SHIELD developers.

• fabrics - A list of SHIELD Agent Fabric configurations.

• fabrics[].name - The name of this fabric. For the Legacy SSH fabric, this must be legacy.

• fabrics[].ssh-key - The literal, PEM-encoded RSA private key that the SHIELD core should use when connecting to remote SHIELD agent processes.

  This is required for the Legacy SSH fabric.

• limit.retention.max - The maximum number of days that any backup archive may be retained for. This can be useful to ensure that tenants don't overrun storage with excessively long retention periods.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_MAXIMUM_RETENTION environment variable.

• limit.retention.min - The minimum number of days that all backup archives must be retained for. This allows SHIELD operators to enforce organization-wide compliance for archive retention. Defaults to 1 (day).

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_MINIMUM_RETENTION environment variable.

• scheduler.fast-loop - The frequency, in seconds, of the SHIELD scheduler's "fast loop." On every iteration of the fast loop, SHIELD will schedule backup jobs that ought to run, execute pending tasks (if it has workers available), and handle inbound agent registration pings.

  By default, the fast loop executes once a second. Unles you have an urgent need otherwise, you shouldn't change this.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_FAST_LOOP environment variable.

• scheduler.slow-loop - The frequency, in seconds, of the SHIELD scheduler's "slow loop." The slow loop handles administrative tasks for the SHIELD core, including archive expiration and purgation, session clearing, data analytics, and cloud storage testing>

  By default, the slow loop exucutes once every 300 seconds (5 minutes). Turning up the frequency will result in higher load on external cloud storage systems. Decreasing the frequency will cause expired archives to remain in cloud storage for longer.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_SLOW_LOOP environment variable.

• scheduler.threads - How many worker threads should the SHIELD core spin. This defaults to 5, but you should increase the 1.5 times the number of concurrent backup tasks you expect to see, at peak.

  Low worker counts can cause the SHIELD scheduler to "stall out" and not execute scheduled tasks in a timely fashion. The 1.5x multiplier accounts for purge operations, cloud storage tests, and other background tests.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_THREADS environment variable.

• scheduler.timeout - How long (in hours) should the SHIELD core allow a single task to execute before considering it hung, and terminate it.

  In the Docker image (under automatic configuration), this can be set by the $SHIELD_TASK_TIMEOUT environment variable.

• vault.address - The URL of the SHIELD Vault. This should almost always be https://127.0.0.1:8200. If you are using the BOSH release, this cannot be configured.

  In the Docker image (under automatic configuration), this can be set by the $VAULT_ADDR environment variable.

• vault.ca - The path to the X.509 Certificate Authority certificate, PEM-encoded, for validating the Vault certificate. If you are using the BOSH release, this cannot be configured (nor does it need to be).

• web-root - The root path to the SHIELD web management UI assets. Defaults to the relative path web, which is probably not what you want.

SHIELD Agent Configuration File Reference

The SHIELD agent configuration file is a YAML file, read at startup by the shield-agent binary.

• name (required) - The name of this agent, for registration with the SHIELD core. This name will appear in web and CLI interfaces, to people configuring backup jobs, and should describe the role this agent installation plays in the overall topology.

• authorized_keys_file (required) - The path to an SSH authorized keys file, which should contain the public component of the agent private key that the SHIELD core will use to authenticate to the agent for remote orchestration.

• listen_address - The IP address and TCP port that the SHIELD agent should bind to and listen on for incoming orchestration (via SSH). Defaults to *:5444. * is interpreted to mean all interfaces.

• plugin_paths (required) - A YAML list of paths that the agent will use when attempting to resolve plugin names to binaries. This is kind of like the canonical UNIX $PATH environment variable, except it does not apply to any programs that the plugins themselves attempt to execute.

  You should list all of your plugin binary directories here.

• registration - This subsection governs how this agent will register with its SHIELD core. While technically optional, registration is highly recommended, from an ease-of-use standpoint.

  The following keys exist underneath registration::

  • url - The HTTP(S) URL of the upstream SHIELD core. This will normally be something like https://$ip_or_hostname/.

  • interval - How often (in seconds) should the agent ping the SHIELD core and provide reigstration details. The SHIELD core determines when it validates agent registrations and extracts metadata information, so this setting cannot be used to increase the frequency of such updates.

  • shield_ca_cert - Path to a file containing the PEM-encoded CA certificate that issued the SHIELD core's X.509 TLS certificate. This allows operators to validate self-signed certificates, or custom, in-house CA-issued certificates.

  This has no effect of skip_verify is set to true.

  • skip_verify - Whether or not to disable verification of the SHIELD core X.509 TLS certificate. This defaults to false, since certificate verification is generally A Good Thing ™

Using SHIELD

SHIELD features a beautiful web user interface and a robust command-line interface. We like to think of the web UI as providing more visibility into the configuration of SHIELD, while the CLI provides more flexibility in terms of automation.

The Web UI

You can access the web UI by pointing your browser at the IP address of your SHIELD core installation. SHIELD forces all HTTP traffic over TLS, via port 443, for security reasons.

Logging In

Before you can interact with SHIELD, you must log in.

On the right is the login form for local authentication. On the left is a list of the configured authentication providers. These allow SHIELD administrators to integrate SHIELD authentication with 3rd-party, external identity systems like Github, or Cloud Foundry UAA.

Note: You may not have any authentication providers listed.

The Heads-up Display

All logged in? Great!

At the top of the screen, you should see the heads-up display:

To the left is identifying information about this SHIELD core, including the configured SHIELD environment name, the IP address and/or fully-qualified domain, and the version of SHIELD.

The first pane summarizes the overall health of SHIELD and the current tenant's configuration.

• SHIELD is ... - Reports the current status of the SHIELD API. If all is well, this will say SHIELD is up, in a reassuring green hue. If the SHIELD core is not responding to API calls, this will say SHIELD is DOWN, in red. Sometimes, it may report that the SHIELD is locked, in which case an administrator needs to intervene to unlock it.

• Cloud Storage is ... - Reports the health of all global cloud storage systems, as well as the health of all cloud storage specific to the currently selected tenant.

• Jobs are ... - Reports the status of all backup jobs for the current tenant. It considers only the most recent execution of each job, whether it was scheduled or run manually (ad hoc).

The second pane, titled Data Protection Summary, provides some numbers for your consideration. All of these are per-tenant.

• Scheduled Backup Jobs - How many total jobs are scheduled to run.

• Backup Archives - How many backup archives exist.

• Cloud Storage Used - How much of cloud storage is being used by the backup archives for this tenant's jobs.

• Daily Storage Increase - A simple linear projection of the amount of additional cloud storage that will be used, each day, given the current schedules, retention policies, and archive sizes.

The heads-up display is partially dependent on the current tenant, so if you switch to a different tenant, you might get different numbers / statuses.

The Task Sidebar

To the left of the screen is a sidebar with links to the common tasks you may want to perform:

• Run an ad hoc backup
• Restore data from a backup

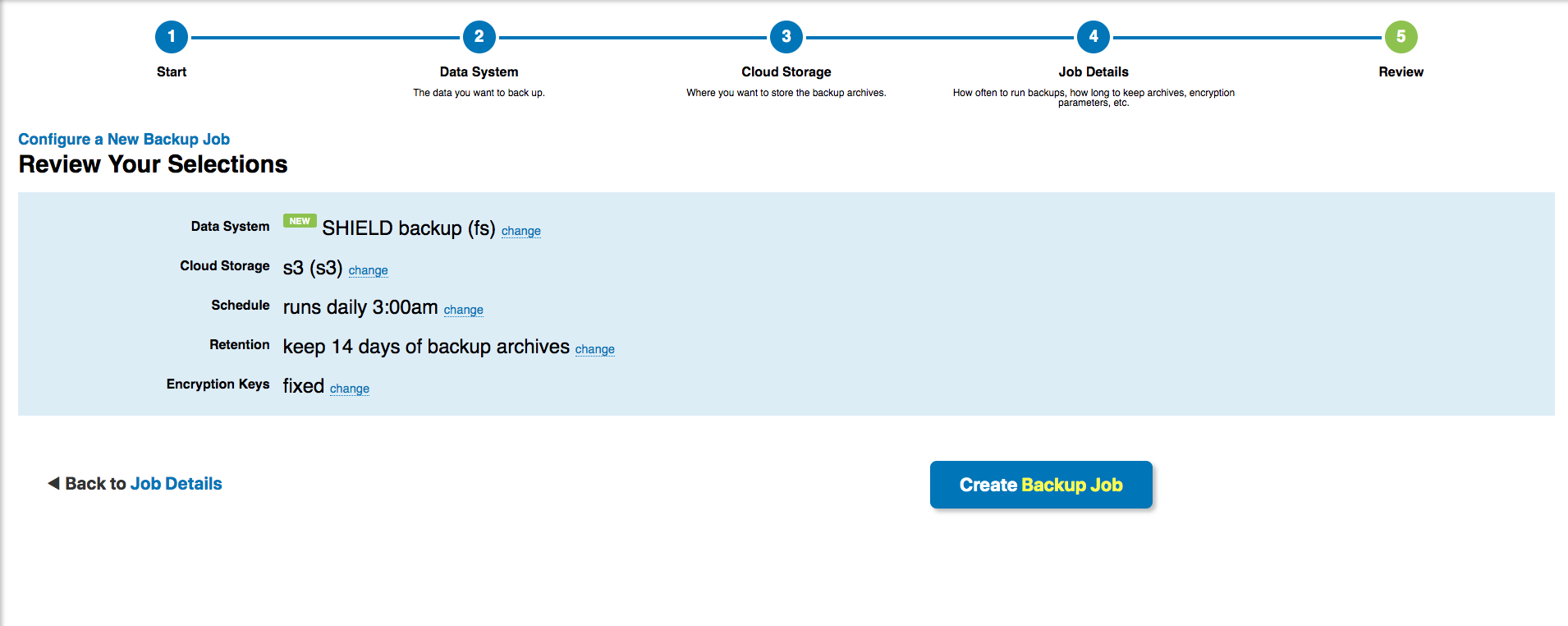

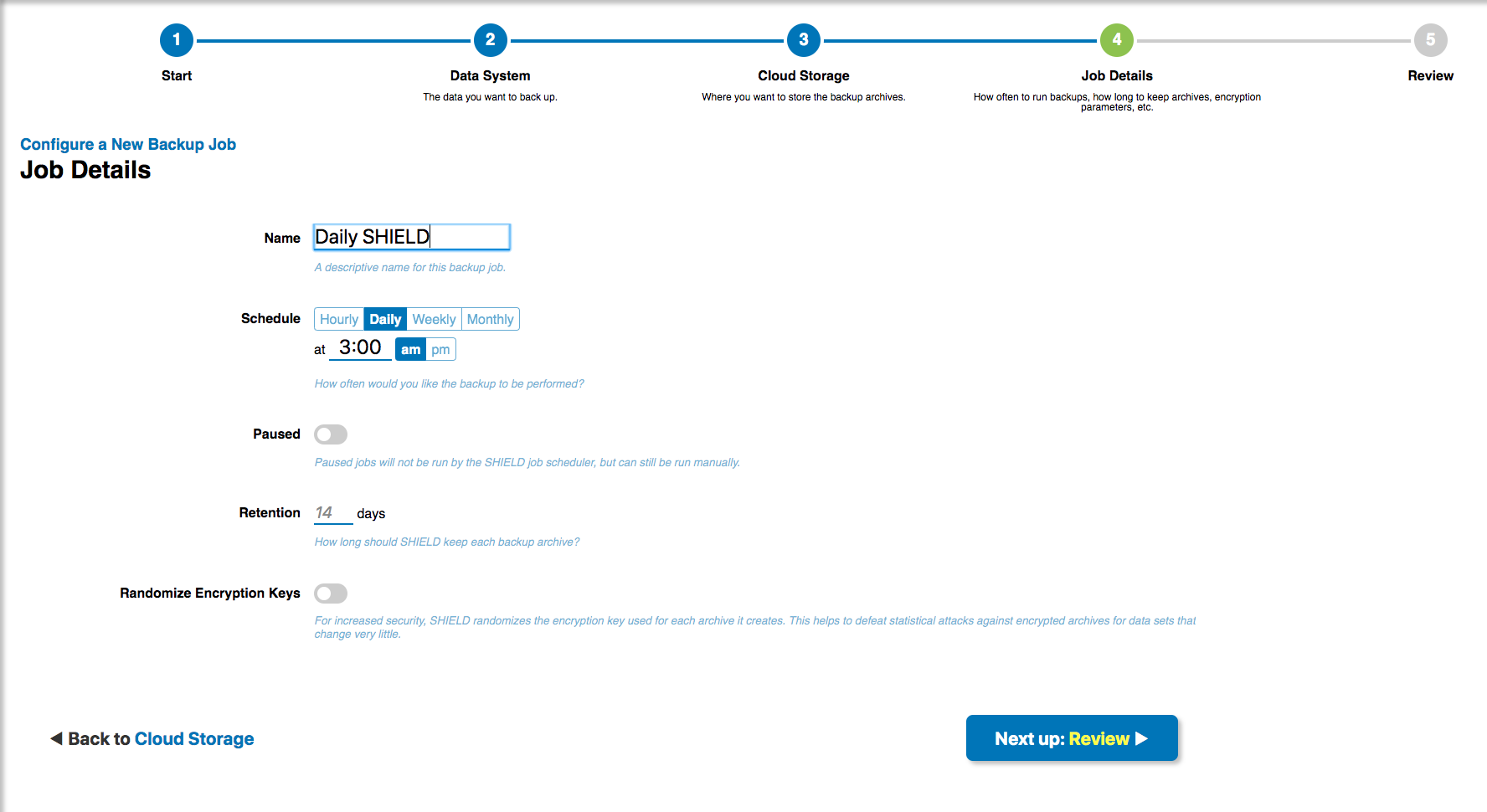

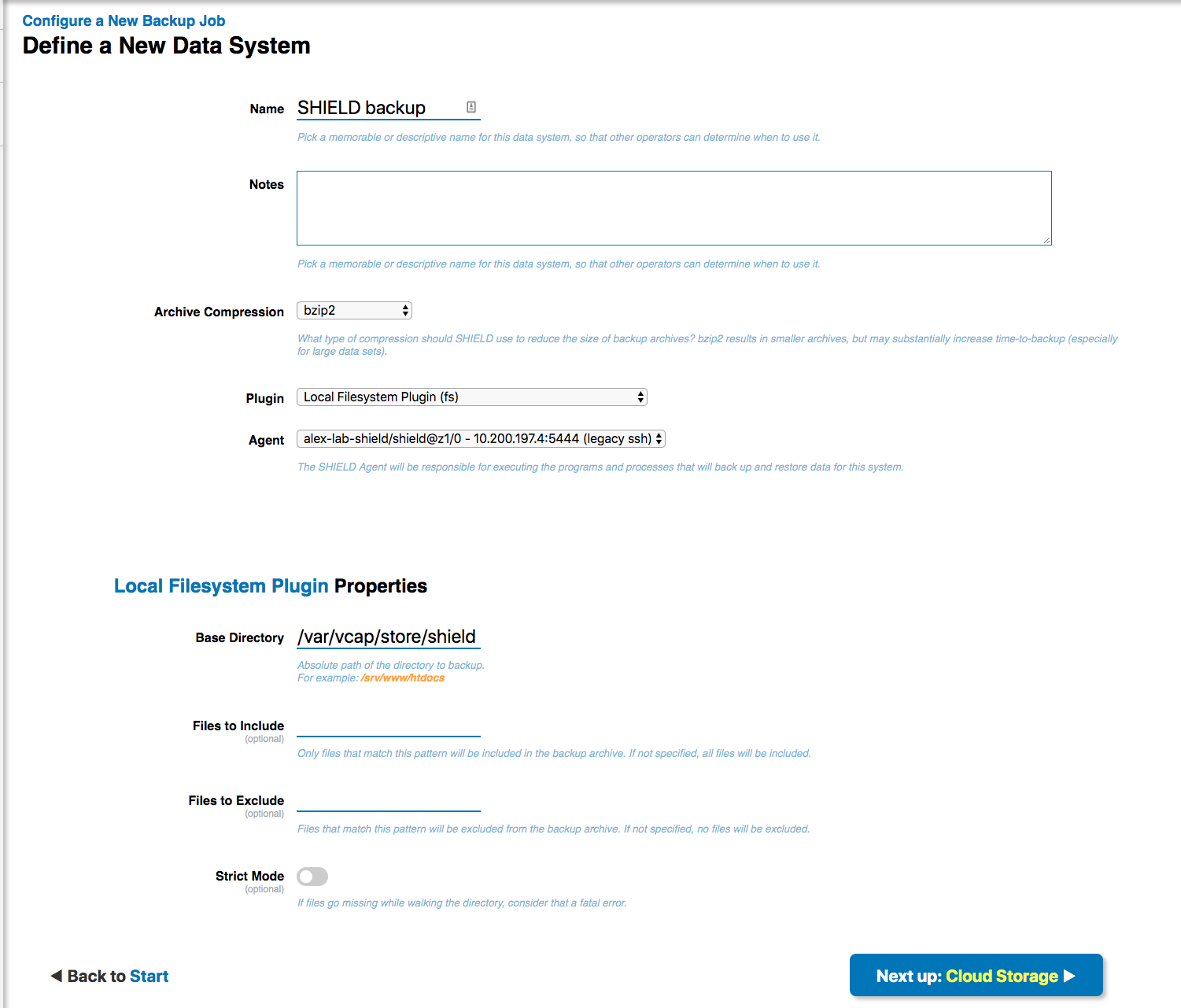

• Configure a new backup job

The Top Bar

TBD

The Navigation Bar

The black navigation bar (immediately under the heads-up display) will stick to the top of the viewport as you scroll. It provides top-level navigation, including:

• Systems - Your data systems are the things that SHIELD protects, by making copies of the important data contained within them, on a scheduled and recurring basis. This page lets you review and manage those systems.

• Storage - Cloud storage is where SHIELD keeps the backup copies of your data. You can configure however many storage systems you want, in whatever configuration you deem appropriate. This page lets you access both global (shared) cloud storage systems, and those specific to your tenant.

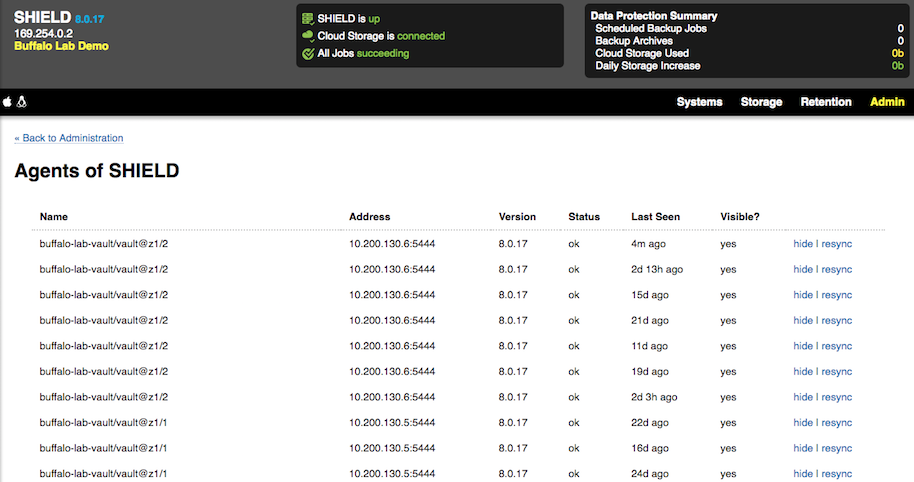

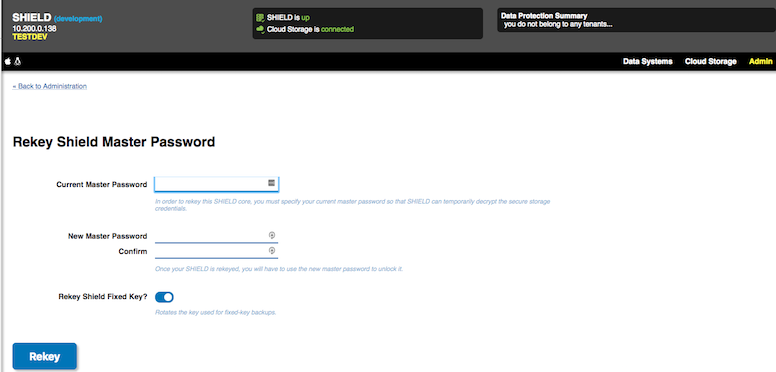

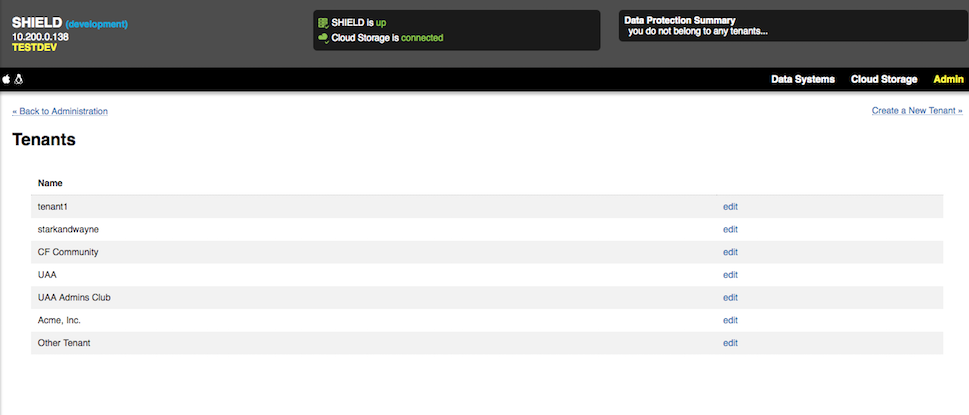

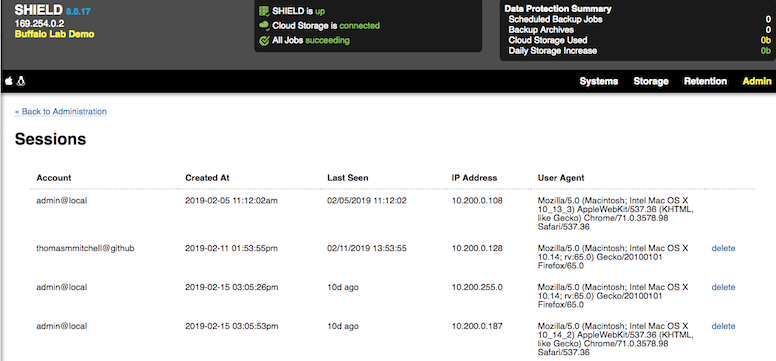

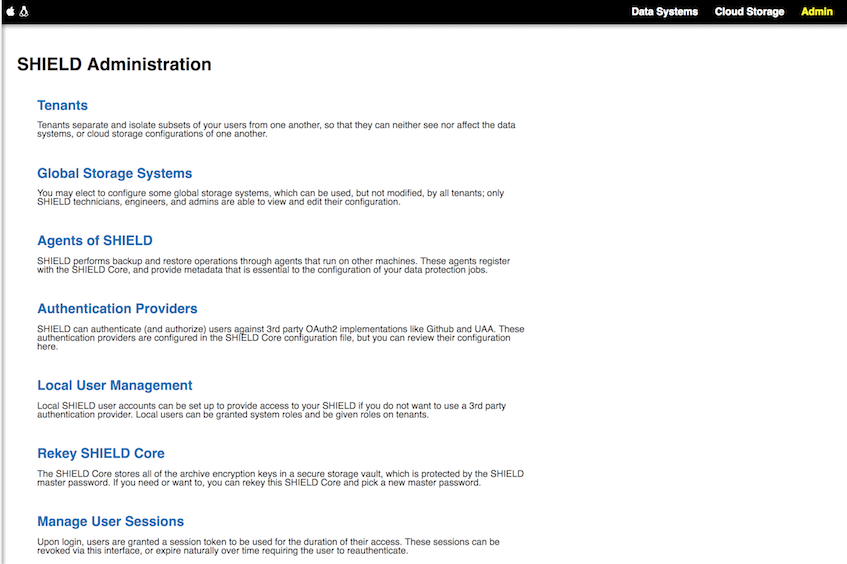

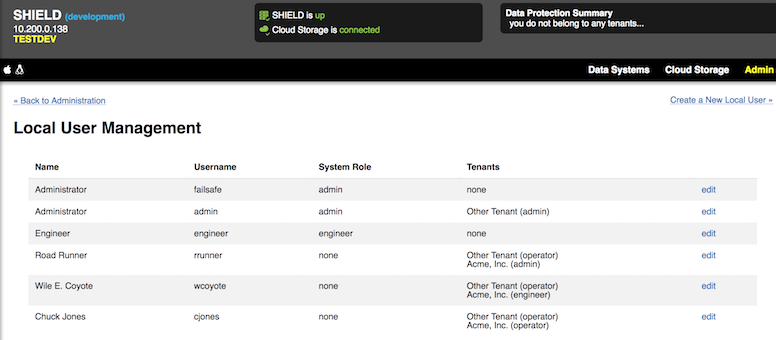

• Admin - This one is for SHIELD administrators only. It provides access to a host of administrative functions like tenant and user management, global cloud storage management, etc.

The CLI

If you prefer life in the terminal, you're in luck — SHIELD has a command-line interface packed with just as much functionality as the web interface. To get started with the CLI, you first must configure access to the SHIELD core by identifying the API endpoint and logging in:

$ shield api https://shield-ip my-shield

$ shield -c my-shield login
Username: admin
Password:
logged in successfully!

To see what more the CLI can do, check out the following helpful commands:

$ shield -h
$ shield commands

Note: the remainder of this guide will focus on the web user interface. Terminal fans are encouraged to explore the SHIELD CLI to see how those same concepts can be applied in a textual world.

Configuring Backups

TBD

Wizard Walkthrough

TBD

The Systems Page

TBD

Adding a second schedule

TBD

Running Backups / Restores

The primary point of running SHIELD is to run regularly-scheduled backup jobs, and then (when necessary) restore backups to their original data system.

Ad hoc vs. Scheduled

SHIELD can run backup jobs in one of two ways.

Ad hoc backup jobs are executed in one-off scenarios, at the direction of a SHIELD operator.

Scheduled backup jobs are run at specific, cyclical times. Operators can specify that backups should be taken hourly, daily, weekly, or monthly. Inside SHIELD, the scheduler keeps track of the next scheduled run of each job, and executes accordingly.

For maximum value, you will probably want to schedule most of your backups. The two modes of operation are not mutually exclusive; you can trigger an ad hoc run of a scheduled job. This comes in handy when carrying out maintenance or change operations against a system and you want the freshest pre-change backup archives as you can get.

The Ad hoc backup Wizard

TBD

The Timeline View

TBD

Annotating Tasks

TBD

Restoring from the Timeline Page

TBD

The Restore Wizard

TBD

Cloud Storage

TBD

How SHIELD Uses Cloud Storage

TBD

Retention Policies

TBD

How the HUD interacts

TBD

Storage Thresholds

TBD

The Storage Display Page

TBD

Shared Storage

TBD

Multi-Tenancy

TBD

What is a Tenant?

TBD

Switching Tenants

TBD

Role Assignments (and what they mean)

TBD

Authentication Providers and Tenants

TBD

UAA

TBD

Github

TBD

The default tenant

TBD

Encryption

TBD

What is Encryption

TBD

Why do I Care?

TBD

How does SHIELD use encryption?

TBD

At-rest vs. in-flight encryption

TBD

Administration

All Administrative tasks are done from the admin panel

Initializing A SHIELD Core

TBD

The Master Password

TBD

The Administrative Backend

TBD

Tenants

Under Tenants admins have the ability to see all current teneants as well as create new tenants. Users can be invited to tenants by editing the tenant or during tenant creation.

Shared Storage

Shared storage can be found under Global Storage Systems, from this page you can view all existing global stores as well as create new ones. Shared or global storage can be configured for use across multiple tenants.

Retention Policy Templates

TBD

Managing Agents

Information on Shield Agents can be found under Agents of Shield. This can be helpful for keeping inventory on agents throughout your deployments or to resync any disconnected agents.

Authentication Providers

You can view the configuration of your shield authentication providers under Authemtication Providers. Please note that configuring an additonal auth provider is done from deploying shield itself.

Local User Management

Shield users can be managed under Local User Management. Here admins can view a list of all Shield users, edit permissions of users, and onboard new users.

Rekeying SHIELD

If you wish to Change your shield master password, you can find this option under Rekeying SHIELD

Note You need your current master password to complete this.

Session Management

Admins can manage user sessions under Manage User Sessions. Here You can get information on all current sessons and expire session tokens if desired.

How Do I Backup X?

SHIELD Itself

In a disaster recovery situation, it's important to get shield up and running to begin recovering your other data systems as soon as possible. It requires backups of SHIELD itself.

How do SHIELD backups work?

The SHIELD state exists as 3 entities found in /var/vcap/store/shield (for a shield deployed by bosh). They Include: - The SHIELD database which exists as a sqlite database name shield.db - The vault.crpyt file - The vault directory

We use the file system plugin to backup these 3 items and store them as our SHIELD backup. When using the fs plugin to backup shield make sure Strict Mode is unchecked. We do this to prevent failures with missing files which can happen with the presence or absence of the shield.db-journal.

The Problem With Encryption

SHIELD backups must be taken with fixed key encryption. In this situation of restoring shield, we cannot use generated encryption keys because there is no way to restore our vault with keys that exist in that sealed vault. This is why it's important to keep the fixed key generated when you initialize SHIELD in a safe and retrievable place.

Configuring the fs Plugin

Lets walk through creating a SHIELD backup from the shield webui.

For the properties make sure you're targeting the agent on the SHIELD box and the correct path.

Make sure to de-select Randomize Encryption Keys

Lets double check our configuration is correct

"Normal-mode" Restores

TBD

Cloud Foundry UAA

Cloud Foundry CCDB

BOSH

Monitoring SHIELD

TBD

Using the HUD

TBD

API Access for Monitoring

TBD

Metrics of interest

TBD

Log messages to watch

TBD

Glossary

Shield has a number of terms and abstractions that are important for an operator to know when working with the tool.

• Shield Core: The shield core servers as the main deployed shield box that includes the shield daemon and api.

• Shield Agents: A shield agent is software that is co-loacted on a deployment you wish to back up that leverages plugins to back up given data system

• Tenants: Shield provides tenancy to allow the seperation of teams/environments by allowing tenants to be created. Under a tenant users can be assigned and given roles, stores can be created, and indivdual systems can be backed up.

• Targets: A target is the name of a configured data system. They can be under the data systems tab.
